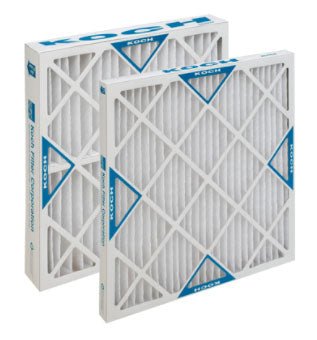

Koch Filter 102-044-005 Multi-Pleat XL8 4" Semi-Standard Size 16" x24" x4"
Multi-Pleat XL8
Standard Capacity XL8 filters provide a combination of efficiency, economy, and excellent overall performance.
Standard Capacity XL8 filters are an excellent choice in applications where filter change schedules are based on preventive maintenance schedules
2.Filter Materials and Construction
Multi-Pleat XL8
Standard Capacity XL8 filters provide a combination of efficiency, economy, and excellent overall performance.
Standard Capacity XL8 filters are an excellent choice in applications where filter change schedules are based on preventive maintenance schedules
2.Filter Materials and Construction
Koch Filter 102-044-005 Multi-Pleat XL8 4" Semi-Standard Size 16" x24" x4"
- Category: COVID-19 PPE, Koch Filter
$90.20
$173.46
Koch Filter 102-044-005 Multi-Pleat XL8 4" Semi-Standard Size 16" x24" x4" , 6 ea/case
PN : 102-044-005
Size : 16" x 24" x 4"
Multi-Pleat XL8
Standard Capacity XL8 filters provide a combination of efficiency, economy, and excellent overall performance.
Standard Capacity XL8 filters are an excellent choice in applications where filter change schedules are based on preventive maintenance schedules
Multi-Pleat XL-8 (MERV 8) (4” Nominal Depth), Engineering Specification
1.General- Filter shall be the Multi-Pleat SC XL-8 extended surface pleated air filter manufactured by Koch Filter
- Filters shall be available in standard capacity pleat configuration with a depth of 4” (nominal -3- 3/4” actual)
- Filters shall be classified UL and cUL per the UL 900 Standard
2.Filter Materials and Construction
- Media shall be 100% The media will not support microbial growth.
- Media laminated to corrosion resistant expanded
- Frame shall be a heavy duty, high strength, moisture resistant paperboard (24 point) double wall construction with an integral die-cut faceguard on the air entering and air leaving sides to prevent movement and protect the media pack and ensure media pack integrity during shipping and actual
- The media pack shall be secured within the frame with an adhesive sealant to ensure leak free
- Media laminated to corrosion resistant expanded
- Frame shall be a heavy duty, high strength, moisture resistant paperboard (24 point) double wall construction with an integral die-cut faceguard on the air entering and air leaving sides to prevent movement and protect the media pack and ensure media pack integrity during shipping and actual
- The media pack shall be secured within the frame with an adhesive sealant to ensure leak free
3.Filter Performance
- Filters shall be a MERV 8 when tested in accordance with the ASHRAE 2-2007 Test Standard
- Filter shall have a low initial pressure drop that shall not exceed 0.26” W.G. at an air flow rate of 300
- Filters shall be rated to withstand a continuous operating temperature of 200”F (93”C)
- Filters shall have a recommended final resistance of 1.0” W.G
Koch Filter 102-044-005 Multi-Pleat XL8 4" Semi-Standard Size 16" x24" x4" , 6 ea/case
PN : 102-044-005
Size : 16" x 24" x 4"
Multi-Pleat XL8
Standard Capacity XL8 filters provide a combination of efficiency, economy, and excellent overall performance.
Standard Capacity XL8 filters are an excellent choice in applications where filter change schedules are based on preventive maintenance schedules
Multi-Pleat XL-8 (MERV 8) (4” Nominal Depth), Engineering Specification
1.General- Filter shall be the Multi-Pleat SC XL-8 extended surface pleated air filter manufactured by Koch Filter
- Filters shall be available in standard capacity pleat configuration with a depth of 4” (nominal -3- 3/4” actual)
- Filters shall be classified UL and cUL per the UL 900 Standard
2.Filter Materials and Construction
- Media shall be 100% The media will not support microbial growth.
- Media laminated to corrosion resistant expanded
- Frame shall be a heavy duty, high strength, moisture resistant paperboard (24 point) double wall construction with an integral die-cut faceguard on the air entering and air leaving sides to prevent movement and protect the media pack and ensure media pack integrity during shipping and actual
- The media pack shall be secured within the frame with an adhesive sealant to ensure leak free
- Media laminated to corrosion resistant expanded
- Frame shall be a heavy duty, high strength, moisture resistant paperboard (24 point) double wall construction with an integral die-cut faceguard on the air entering and air leaving sides to prevent movement and protect the media pack and ensure media pack integrity during shipping and actual
- The media pack shall be secured within the frame with an adhesive sealant to ensure leak free
3.Filter Performance
- Filters shall be a MERV 8 when tested in accordance with the ASHRAE 2-2007 Test Standard
- Filter shall have a low initial pressure drop that shall not exceed 0.26” W.G. at an air flow rate of 300
- Filters shall be rated to withstand a continuous operating temperature of 200”F (93”C)
- Filters shall have a recommended final resistance of 1.0” W.G
