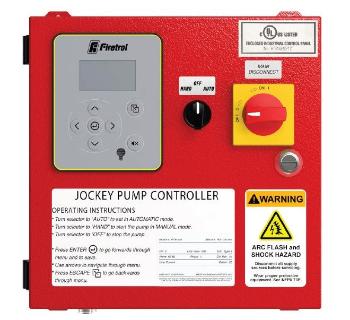

Firetrol Model FTA570F
Limited Option Jockey Pump Controllers
Firetrol®FTA570F Jockey Pump Controllers are intended for use with fire pump systems. They are used for pressure maintenance in fire pump installations to prevent unnecessary operation of the main fire pump.
APPROVALS:
Firetrol jockey pump controllers are listed by Underwriters’ Laboratories, Inc., in accordance with UL508A, Standard for Industrial Controls, and CSA, Standard for Industrial Control Equipment. They are built to meet or exceed the requirements of
the approving authorities as well as NEMA and the latest edition NFPA 70, National Electrical Code.
STANDARD FEATURES:
The following are included as standard with each controller:
• NEMA Type 2 (IP22) painted steel enclosure
• Type F fuseless motor starter and protector
• Suitable for use as service equipment
• Hand-Off-Auto Selector Switch
• Minimum run timer
• On-Delay timer
• Control circuit transformer with 24VAC secondary
• 0-600 psi (0-42 bar) solid state pressure transducer
• Visual Indication, Start/Stop pressure settings - system pressure - motor overload
• Door mounted pressure display/user interface.
• LED indication for pressure above stop setting (green), pressure between start and stop setting (yellow), and pressure below start setting (red).
• Rotary style door mounted disconnect handle with door interlock
