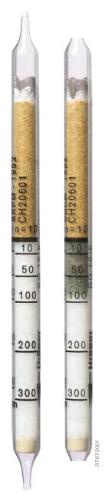

Dräger-Tube Carbon Monoxide 10/b - PN: CH20601
Dräger-Tube Carbon Monoxide 10/b - PN: CH20601
$94.25
Dräger-Tube Carbon Monoxide 10/b (10)
PN: CH20601
| Application Range | |
| Standard Measuring Range | 100 to 3.000 / 10 to 300 ppm |
| Number of Strokes n | 1 / 10 |
| Time for Measurement | approx. 20 s / approx. 4 min |
| Standard Deviation | ± 10 to 15% |
| Color Change | white to brown green |
| Ambient Operating Conditions | |
| Temperature |
0 to 50 °C |
| Absolute Humidity | max 50 mg H2O/L |
| Cross Sensitivity |
| The following have no influence on the display of 10 ppm CO (respectively): 200ppm n-octane . with carbon attachment tube (CH 24101) 10000 ppm 30 ppm benzene 100 ppm hydrogen sulphide 50 ppm sulphur dioxide 15 ppm nitrogen dioxide 40 ppm butadiene 10 ppm CO+ 100 ppm benzene: display approx. 30 ppm 10 ppm CO+ 40 ppm chloroform display approx. 35 ppm 10 (60) ppm acetylene : display 0 (70) ppm |
Dräger-Tube Carbon Monoxide 10/b (10)
PN: CH20601
| Application Range | |
| Standard Measuring Range | 100 to 3.000 / 10 to 300 ppm |
| Number of Strokes n | 1 / 10 |
| Time for Measurement | approx. 20 s / approx. 4 min |
| Standard Deviation | ± 10 to 15% |
| Color Change | white to brown green |
| Ambient Operating Conditions | |
| Temperature |
0 to 50 °C |
| Absolute Humidity | max 50 mg H2O/L |
| Cross Sensitivity |
| The following have no influence on the display of 10 ppm CO (respectively): 200ppm n-octane . with carbon attachment tube (CH 24101) 10000 ppm 30 ppm benzene 100 ppm hydrogen sulphide 50 ppm sulphur dioxide 15 ppm nitrogen dioxide 40 ppm butadiene 10 ppm CO+ 100 ppm benzene: display approx. 30 ppm 10 ppm CO+ 40 ppm chloroform display approx. 35 ppm 10 (60) ppm acetylene : display 0 (70) ppm |
