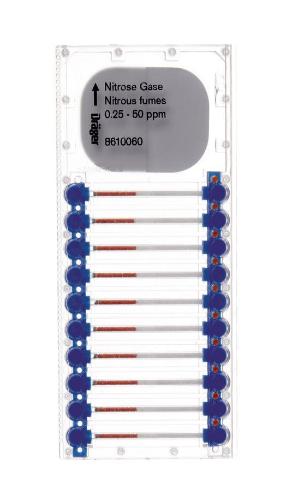

Dräger Nitrous Fumes 0.25 - 50 ppm - PN 8610060
Dräger Nitrous Fumes 0.25 - 50 ppm
PN : 8610060
|
Measuring Range |
0.25 to 25 ppm |
| Typical Measuring Time |
5 to 120 s |
| Accuracy | ± 25% ( under calibration conditions ) |
|
Ambient Conditions |
|
| Temperature |
0 to 40 °C |
| Humidity |
1 to 30 mg/L |
|
Cross Sensitivity |
No influence at 1 ppm nitrous fumes by: 1 ppm ozone 30 ppm sulfur dioxide |
| Hose and probe measurement |
The following flushing time recommendations for hose and probe measurement are marked with a brand-new , dry and clean hose and probes. |
| Hose |
Length ( meter ) |
Flashing time (min) |
| FKM hose |
5 - 20 |
3 |
| FKM hose |
45 |
5 |
| PTFE-line PVC hose |
3 - 15 | 3 |
| Bar probe 90 (83 16 532) |
1 | |
| Telescopic probe ES 150 ( 83 16 533) |
1 | |
| Probe set GP600 )83 28 667) | 3 | |
