Dräger Hydrocyanic Acid 0.5 - 50 ppm - PN 8610520

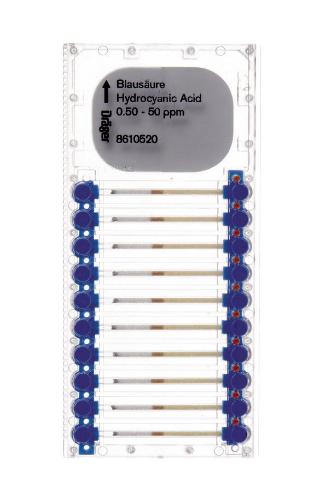

Dräger Hydrocyanic Acid 0.5 - 50 ppm
PN : 8610520
|
Measuring Range |
0.5 to 50 |
| Typical Measuring Time |
approx. 20 to 180 s |
| Accuracy | ± 15% ( under calibration conditions ) |
|
Ambient Conditions |
|
| Temperature |
0 to 40 °C |
| Humidity |
1 to 40 mg/L |
|
Cross Sensitivity |
No influence at 5 ppm hydrocyanic by: 200 ppm hydrocyanic acid 200 ppm ammonia 25 sulfur dioxide 10 hydrogen sulfide |
| Hose and probe measurement |
The following flushing time recommendations for hose and probe measurements are marked with a brand-new, dry and clean hose and probes. |
| Hose |
Length (meter) |
Flashing time (min) |
| FKM hose |
5-20 |
3 |
| FKM hose |
45 |
8 |
| PTFE-lined PVS hose |
3-15 | 3 |
| Bar probe 90 (8316532) |
3 | |
| Telescopic probe ES 150 (83 16 533) |
not possible | |
| Probe Set GP600 (83 28 667) |
3 |
|
