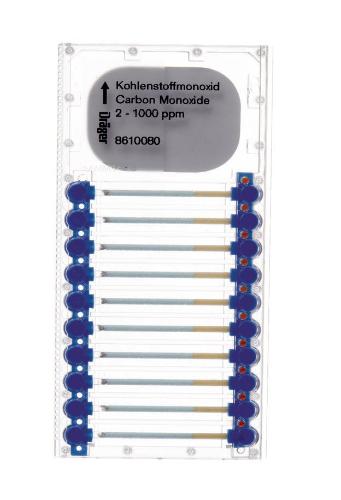

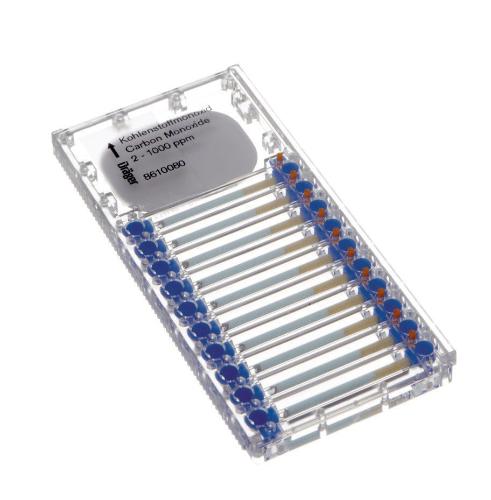

Dräger Carbon Monoxide 10 - 1000 ppm - PN 8610080

Add Your Review
$101.00

Dräger Carbon Monoxide  10 - 1000 ppm
PN : 8610080


Measuring Range
 2 to 1000 ppm
Typical Measuring Time
 Approx. 5 to 300 s
Accuracy  ± 25% ( under calibration conditions )
Ambient Conditions
Temperature
 0 to 40 °C
Humidity
 1 to 40 mg/L
Cross Sensitivity
 No influence at 10 ppm carbon monoxide by:
2000 ppm hydrogen
1000 ppm butane
1000 ppm propane
500 ppm n-octane
100 ppm hydrogen sulfide
15 ppm nitrogen dioxide
10 ppm sulfur dioxide
Hose and probe measurement
 The following flushing time recommendations for hose and probe measurement are marked with a brand-new , dry and clean hose  and probes.



 Hose
 Length ( meter )
 Flashing time (min)
FKM hose
 5 - 20
 3
FKM hose
 45
 5
PTFE-line PVC hose
 3 - 15 3
Bar probe 90 (83 16 532)
2
Telescopic probe ES 150 ( 83 16 533)
2
Probe set GP600 )83 28 667)
3





Dräger Carbon Monoxide  10 - 1000 ppm
PN : 8610080


Measuring Range
 2 to 1000 ppm
Typical Measuring Time
 Approx. 5 to 300 s
Accuracy  ± 25% ( under calibration conditions )
Ambient Conditions
Temperature
 0 to 40 °C
Humidity
 1 to 40 mg/L
Cross Sensitivity
 No influence at 10 ppm carbon monoxide by:
2000 ppm hydrogen
1000 ppm butane
1000 ppm propane
500 ppm n-octane
100 ppm hydrogen sulfide
15 ppm nitrogen dioxide
10 ppm sulfur dioxide
Hose and probe measurement
 The following flushing time recommendations for hose and probe measurement are marked with a brand-new , dry and clean hose  and probes.



 Hose
 Length ( meter )
 Flashing time (min)
FKM hose
 5 - 20
 3
FKM hose
 45
 5
PTFE-line PVC hose
 3 - 15 3
Bar probe 90 (83 16 532)
2
Telescopic probe ES 150 ( 83 16 533)
2
Probe set GP600 )83 28 667)
3
