Delta DVS-005W01-MC01
Excellent ruggedized hardware design of 12 to 48 VDC redundant power inputs and a wide‑operating temperature from ‑40 C to 75 C without the use of internal fans are providing superior reliability.
DIP switches for built‑in alarm relay function, assisting network engineers with notification when port link‑down and power failures occur.
Excellent ruggedized hardware design of 12 to 48 VDC redundant power inputs and a wide‑operating temperature from ‑40 C to 75 C without the use of internal fans are providing superior reliability.
DIP switches for built‑in alarm relay function, assisting network engineers with notification when port link‑down and power failures occur.
Delta Products
Ethernet Switches, DVS-005 Series

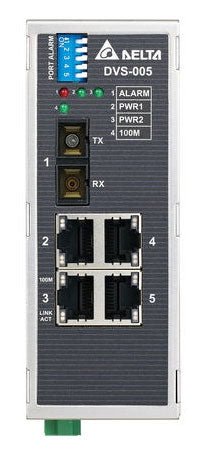

Item# DVS-005W01-MC01 - Wide Temp Unmanaged Ethernet Switch w/built-in alarm IO, 4 Ethernet ports, & 1 MultiMode Fiber Port
DVS-005 Series Information
Supports IEEE802.3x full/half‑duplex, auto‑MDI/MDI‑X.Excellent ruggedized hardware design of 12 to 48 VDC redundant power inputs and a wide‑operating temperature from ‑40 C to 75 C without the use of internal fans are providing superior reliability.
DIP switches for built‑in alarm relay function, assisting network engineers with notification when port link‑down and power failures occur.
Specifications
Item Number: DVS-005W01-MC01
Brand:Delta Products
Item Category:Networking and Communication
Subcategory:Ethernet Switches
Series:DVS-005
Network Configuration:Unmanaged
Total Number of Ports:5
Primary Port Style:RJ-45
Primary Port Standard:10Base-TX;100Base-TX
Primary Port Qty.:4
Secondary Port Style:SC Fiber Multi Mode 5km
Secondary Port Standard:100Base-FX
Secondary Port Qty.:1
Supply Voltage:12~48 VDC
Power Over Ethernet(PoE):No
MAC Addresses:1,000
Enclosure Rating:IP40
Enclosure Composition:Metallic
Mounting:DIN Rail/Wall
Operating Temperature:-40 to 167 Degrees F
Approvals:UL
Delta Products
Ethernet Switches, DVS-005 Series
Item# DVS-005W01-MC01 - Wide Temp Unmanaged Ethernet Switch w/built-in alarm IO, 4 Ethernet ports, & 1 MultiMode Fiber Port
DVS-005 Series Information Supports IEEE802.3x full/half‑duplex, auto‑MDI/MDI‑X.
Excellent ruggedized hardware design of 12 to 48 VDC redundant power inputs and a wide‑operating temperature from ‑40 C to 75 C without the use of internal fans are providing superior reliability.
DIP switches for built‑in alarm relay function, assisting network engineers with notification when port link‑down and power failures occur.
Specifications
Item Number: DVS-005W01-MC01 Brand:Delta Products Item Category:Networking and Communication Subcategory:Ethernet Switches Series:DVS-005 Network Configuration:Unmanaged Total Number of Ports:5 Primary Port Style:RJ-45 Primary Port Standard:10Base-TX;100Base-TX Primary Port Qty.:4 Secondary Port Style:SC Fiber Multi Mode 5km Secondary Port Standard:100Base-FX Secondary Port Qty.:1 Supply Voltage:12~48 VDC Power Over Ethernet(PoE):No MAC Addresses:1,000 Enclosure Rating:IP40 Enclosure Composition:Metallic Mounting:DIN Rail/Wall Operating Temperature:-40 to 167 Degrees F Approvals:ULRelated items
