Delta DVP12SA211R
Delta Products
Programmable Logic Controllers, SA2 Series

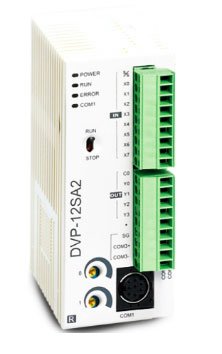

Item# DVP12SA211R - DVP-S CPU 8DI/4DO, 24VDC, Relay Output
SA2 Series Information
- MPU points: 12 (8DI + 4DO)
- Max. I/O points: 492 (12 + 480)
- Program capacity: 16k steps
- COM port: Built‑in RS‑232 & 2 RS‑485 ports, compatible with Modbus ASCII/RTU protocol.
- Can be master or slave.
- High‑Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high‑speed pulse output.
- Extendable to Max. 8 Modules: DVP‑SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single‑axis motion control functions.
- Built-in High-Speed Counters
Specifications
Item Number: DVP12SA211R
Brand:Delta Products
Item Category:Programmable Logic Controllers
Series:SA2
Nominal Supply Voltage:24 VDC
Number of Inputs & Type:8 - Digital
Number of Outputs & Type:4 - Relay
Expandable:Up to 480 I/O Points
Display Type:None
Approvals:UL;CE
Delta Products
Programmable Logic Controllers, SA2 Series
Item# DVP12SA211R - DVP-S CPU 8DI/4DO, 24VDC, Relay Output
SA2 Series Information
- MPU points: 12 (8DI + 4DO)
- Max. I/O points: 492 (12 + 480)
- Program capacity: 16k steps
- COM port: Built‑in RS‑232 & 2 RS‑485 ports, compatible with Modbus ASCII/RTU protocol.
- Can be master or slave.
- High‑Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high‑speed pulse output.
- Extendable to Max. 8 Modules: DVP‑SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single‑axis motion control functions.
- Built-in High-Speed Counters
Specifications
Item Number: DVP12SA211R Brand:Delta Products Item Category:Programmable Logic Controllers Series:SA2 Nominal Supply Voltage:24 VDC Number of Inputs & Type:8 - Digital Number of Outputs & Type:4 - Relay Expandable:Up to 480 I/O Points Display Type:None Approvals:UL;CERelated items
