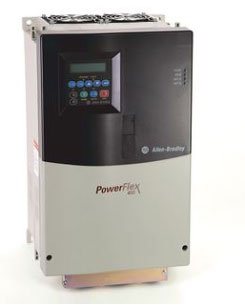

Allen Bradley 22CD060A103
Description
AC Drive,30 kW (40 HP),480V AC Input,3 PH,50-60 Hz,60 A Output,IP30,UL-NEMA Type 1,Panel Mounting,With PID,PIP Algorithm AndFireSystem Tie,In, Frame D, 0.98 PF,Integral Keypad And Led Display, RS485, Fixed Terminal Block Connections.
Specifications
| Brake IGBT: | Not Included |
| Connection: | Fixed Terminal Block |
| Control: | RS485 |
| Country of Origin: | CN |
| Enclosure: | IP30,UL-NEMA Type 1 |
| Frequency Rating: | 50-60 |
| Input Voltage Rating: | 480V AC |
| Mounting: | Panel Mount |
| Output Current Rating: | 60 A |
| Power Factor: | 0.98 |
| Power Rating: | 30 kW (40 Hp) |
| Sub Brand: | PowerFlex 400 |
| User Interface: | Integral Keypad; LED Display |
Description
AC Drive,30 kW (40 HP),480V AC Input,3 PH,50-60 Hz,60 A Output,IP30,UL-NEMA Type 1,Panel Mounting,With PID,PIP Algorithm AndFireSystem Tie,In, Frame D, 0.98 PF,Integral Keypad And Led Display, RS485, Fixed Terminal Block Connections.Specifications
| Brake IGBT: | Not Included |
| Connection: | Fixed Terminal Block |
| Control: | RS485 |
| Country of Origin: | CN |
| Enclosure: | IP30,UL-NEMA Type 1 |
| Frequency Rating: | 50-60 |
| Input Voltage Rating: | 480V AC |
| Mounting: | Panel Mount |
| Output Current Rating: | 60 A |
| Power Factor: | 0.98 |
| Power Rating: | 30 kW (40 Hp) |
| Sub Brand: | PowerFlex 400 |
| User Interface: | Integral Keypad; LED Display |
