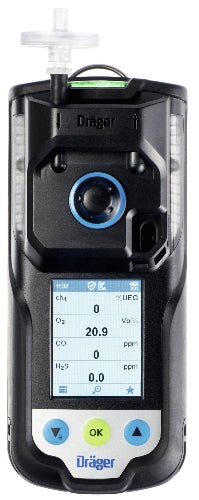

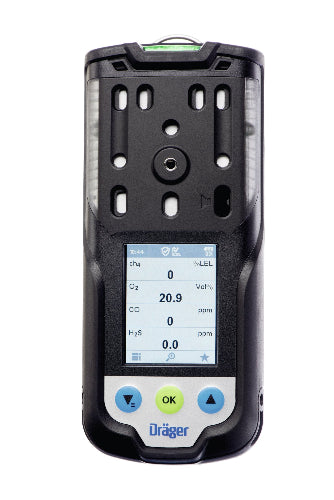

Dräger X-am 3500 Ex, O₂, CO LC, H₂S LC - PN: 8328419
Dräger X-am 3500 Ex, O₂, CO LC, H₂S LC
with Inductive Charger (8325825) and Power Supply (8316997)

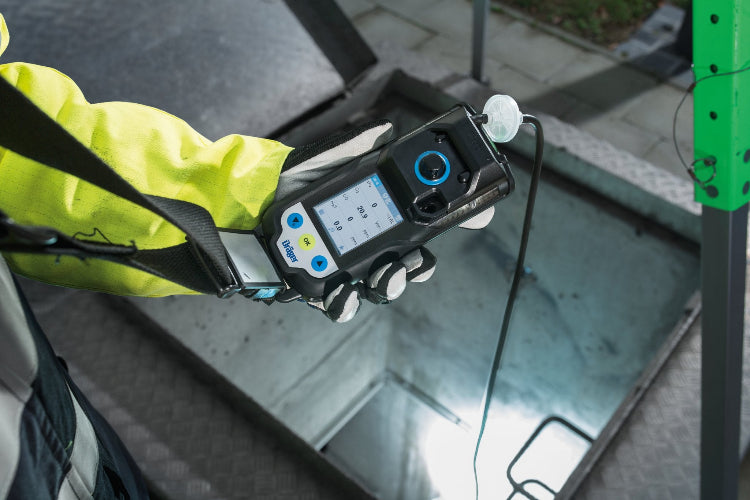

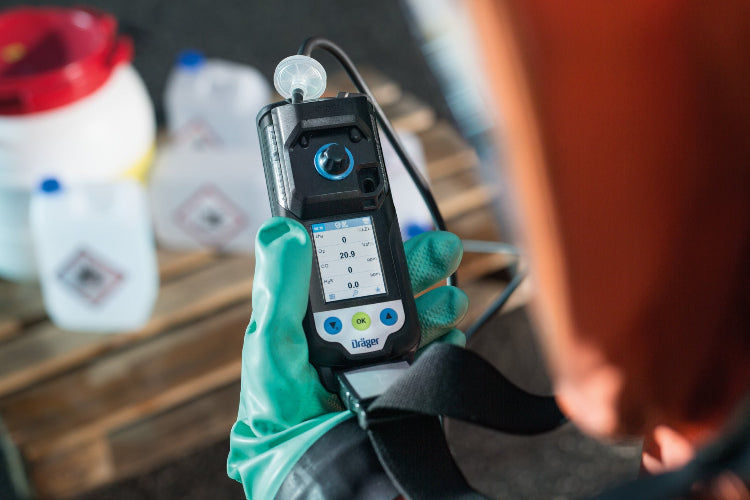

The Dräger X-am 3500 was especially designed for clearance measurements and personnel monitoring applications. The 1 to 4 gas detector reliably detects flammable gases and vapors as well as O2, CO, H2S, NO2 and SO2. The innovative signaling design and extensive range of accessories ensure optimum safety and easy handling.
Benefit
- Switch easily between pump and diffusion mode
- Slots for Dräger Sensors to measure up to four gases
- Measurement performance approval by external approval body (Europe):
Flammable gases and vapours: methane, propane, n-nonane, oxygen as well as selected toxic gases - Glowing green D-Light (optional) indicates: tested and ready for use
- Easy to read colour display with zoom function
- Inductive charging
| Technical Data | |
| Dimensions | (H x W x D) 179 x 77 x 42 mm |
| Weight | Approx. 550 g, depending on sensor configuration, without strap, with pump |
| Housing | Durable two component housing |
| Display | High contrast colour display |
| Temperature | 20 °C to + 50 °C |
| Pressure | 700 to 1,300 hPa (measuring function) 800 to 1,100 hPa (use in explosion hazard areas) |
| Relative humidity | 10 to 90 % (short-term up to 95 %) r.h. |
| Alarm | Visual | 3 LED 'red' (gas alarms), 3 LED 'yellow' (device alarms) |
| Acoustic | Multitone, typically 100 dB(A) at 30 cm |
| Ingress protection class | IP 68 |
| Energy supply | Lithium-ion battery, rechargeable, inductive charging |
| Operating times (Diffusion) | With CatEx and 3 EC-sensors | Typically 24 hours |
| With 3 EC-sensors | Typically 120 hours |
| Charging times | Typically 4 hours after use during a shift of max.10 hours |
| Start up times | Typically <60 seconds for standard sensors |
| Data storage | 24 MB, e.g. at 10 minutes per hour of gas exposure with measuring values changing by the second on all 4 channels: approx. 600 hours |
| Pump operation | Max. hose length 45 m |
