Dräger X-am 5100 w/ 6809140 XS EC - HF/HCL Sensor, 8318785 NiMH Battery and Charger Kit - PN : VN00146
Rated 3.5/5 based on 11 customer reviews

Dräger X-am 5100 w/ 6809140 XS EC - HF/HCL Sensor, 8318785 NiMH Battery and Charger Kit - PN : VN00146

$2,579.00

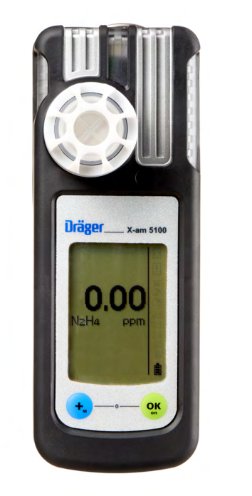

Dräger X-am 5100 Single Gas Monitor

The Dräger X-am 5100 is a small lightweight single gas monitor which is specifically designed for the requirements of personal monitoring. It can be equipped with an electrochemical sensor for hydrazine, hydrogen fluoride / hydrogen chloride or hydrogen peroxide.

Benefits
YOUR ADVANTAGES AT A GLANCE

  • Continuous, precise and reliable measurement
  • A special device design with direct gas entry provides fast sensor response and precise measurement data by preventing gas adsorption on the device housing
  • Lightweight and robust
  • Slipproof and compact design Triple alarm: visual (360°), audible (multitone), vibration
  • Easy to use: two-button operation and user-friendly menus
  • Highly resistant to impacts, vibrations and electromagnetic radiation
  • Operated using a T4 NiMH rechargeable battery.

Technical Data
Dimensions (H x W x D)  48 x 130 x 44 mm (1.89 x 5.12 x 1.73 in)
Weight  220 – 250 g (7.8 – 8.8 oz)
Ambient conditions
Temperature 20 to + 50 °C (4 to 122 °F)
Pressure
700 to 1300 mbar (20.7 to 38.4 inch Hg)
Relative humidity 10 to 90 % RH
Alarms
Visual
360°
Audible Multitone > 90 dB at 30 cm (1 ft)


Ingress Protection  IP 54
Operating times  ~150 h (NiMH rechargeable battery)
Charging times  < 4 h
Data logger  Retrievable using an infrared interface > 1000 h at a recording interval of 1 value per minute
Approvals
ATEX  I M1 Ex ia I Ma
II 1G Ex ia IIC T4/T3 Ga
20 °C ≤ Ta ≤ + 55/40 ° C
IECEx  Ex ia I Ma
Ex ia IIC T4/T3 Ga
20 °C ≤ Ta ≤ + 55/40 °C
CSA  Class I, Div. 1, Groups A,B,C,D TC T4/T3
Class I, Zone 0, A/Ex ia IIC T4/T3 /Ga
CE-mark Electromagnetic compatibility
Directive 2004/108/EG
EN 50270:2006
