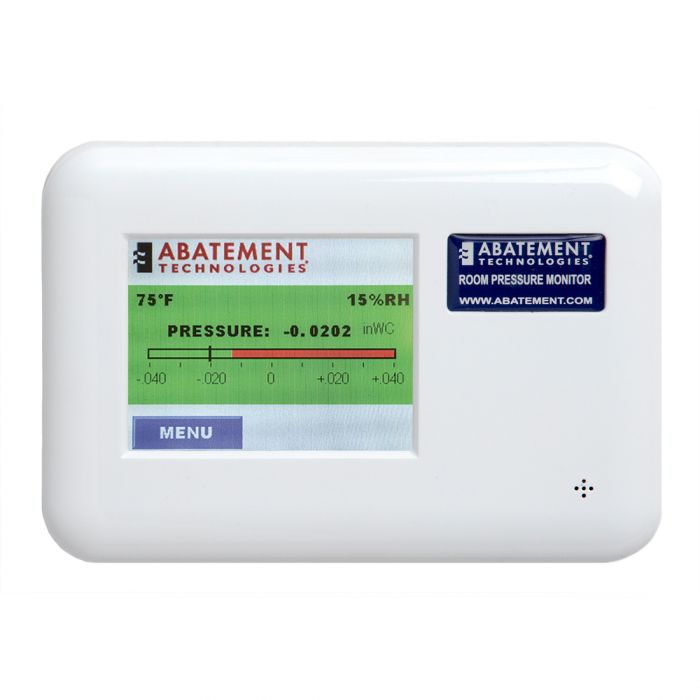

ABATEMENT TECHNOLOGIES RPM-RT2 Wall-mounted Differential Pressure Monitor
- Category: Abatement Technologies, Air Scrubber
ABATEMENT TECHNOLOGIES RPM-RT2 Wall-mounted Differential Pressure Monitor
Part No : RPM-RT2*
Technically-Advanced Model
The RPM-RT2 model can monitor room pressure at three locations by simultaneously measuring the pressure relationships between two separate rooms or areas and a third common reference point, such as a corridor or anteroom.
Features a user-friendly, menu-driven touch screen with intuitive software for quick set-up and ease of operation.
Feature-rich and easy-to-use, RPM Series Wall-Mounted Differential Pressure Monitors include:
- Differential Pressure Range: -0.10 in. water gauge (-25 Pa) to +0.10 in. water gauge (+25 Pa)
- Alarm Range: -.04 in. water gauge (-10 Pa) to +0.04 in. water gauge (+10 Pa)
- View readings history onscreen via internal storage or upload to a PC via a USB stick
- Color-coded screen background (Green, Yellow or Red) designates alarm status
- Password protection feature (can be disabled)
- Visual & audible alarms with audio alarm delay & timed shutoff features
- BACNET & N2 network capability
*Note: RPM-RT1 and RPM-RT2 do not include RPM-SENSOR, RPM-SENSORB (RT2 only), or RPM-CABLE-025. Temperature and relative humidity functionality requires these items.
